Restricted Earth Fault (REF) Protection – Explanation

What Is a Restricted Earth Fault (REF) Relay?

A Restricted Earth Fault relay is a protection device designed to detect earth faults within a defined protection zone, typically covering transformer windings, generator windings, or specific sections of switchgear busbars or feeder circuits. Unlike standard earth fault protection, which monitors the entire system, REF protection is restricted to a specific area, allowing it to detect very small earth fault currents that traditional protection methods might miss.

REF protection works by comparing the vector sum of currents entering and leaving the protected zone. If the current balance is disturbed, indicating current is leaking to earth, the relay will operate and trip the circuit quickly.

How REF Protection Protects Switchgear

In LV and HV switchgear, internal earth faults can lead to busbar damage, cable termination failure, arc flash events, extended downtime, and fire risk. REF protection provides fast, sensitive detection, often operating before fault current reaches destructive levels. Because it is zone-based, it avoids nuisance tripping for faults outside the protected equipment.

How REF Protection Protects Generators

Generators are particularly vulnerable to earth faults because even small faults can cause winding damage and long-term insulation degradation. REF protection helps by detecting low magnitude earth faults early, preventing winding overheating, reducing repair costs, and preventing catastrophic generator failure.

Types of REF Protection

High Impedance REF

High impedance REF schemes are very stable and have traditionally been used in transformer and generator protection. They typically require matched CTs and careful commissioning to ensure stability during through faults.

Low Impedance REF (Modern Digital Relay)

Low impedance REF is more flexible and is commonly integrated into modern digital protection relays. It allows easier configuration, more flexible CT matching, and simplified commissioning.

Relay Manufacturers and Options

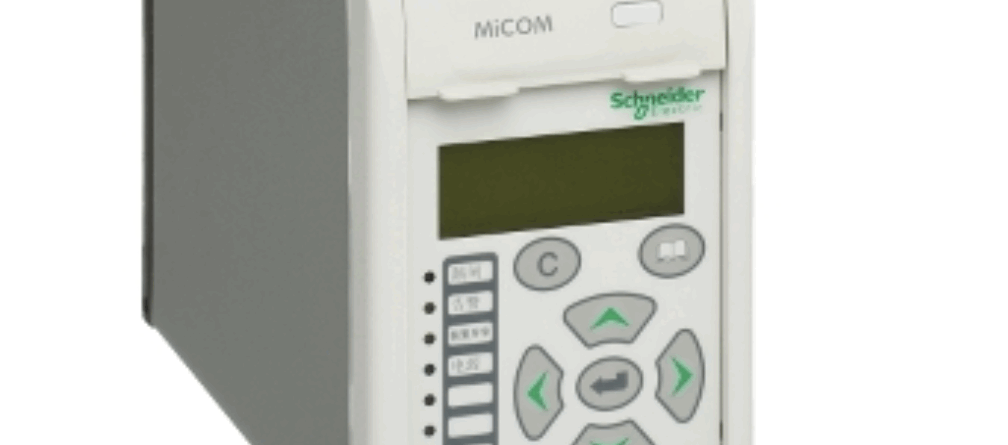

Common protection relay manufacturers offering REF functionality include Schneider Electric, ABB, Siemens, and Schweitzer Engineering Laboratories (SEL). Selection usually depends on system voltage, protection philosophy, communication requirements, and client specification.

Integration into LV Equipment

NKD Group can integrate REF protection into bespoke LV switchgear, generator control panels, transformer LV feeder panels, and retrofit solutions for existing installations. Because systems are designed and built in-house, REF schemes can be tailored to specific site requirements, protection philosophies, and client specifications.

Final Thoughts

Restricted Earth Fault protection is a critical part of modern protection design. By providing fast, sensitive protection within critical zones, REF relays help protect switchgear, generators, and transformers from damage that could otherwise result in major failures. As electrical networks become more complex, REF protection is becoming an essential element of reliable system protection.
