LV429290
LV429290

plug-in kit, ComPact NSX100/160/250, 4 poles

LV429289 plug-in kit, ComPact NSX100/160/250, 3 poles
LV429291 plug-in kit, ComPact NSX 100/160/250 with Vigi add-on module, 3 poles

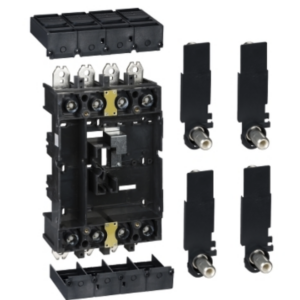

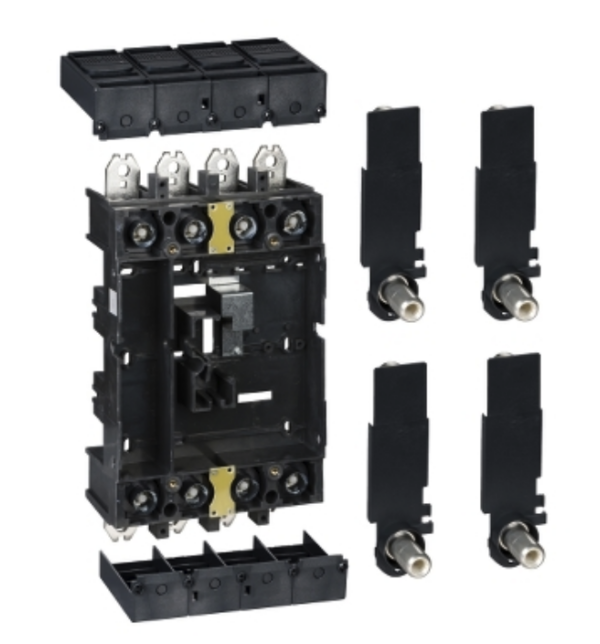

This plug-in kit is designed to convert fixed 4-pole ComPacT NSX 100/160/250 circuit breakers into a plug-in configuration, enabling rapid and straightforward installation and removal.

The kit includes the following components:

  • Plug-in base (LV429267)

  • Four power connections (LV429268)

  • Two short terminal shields (LV429516)

  • Safety trip interlock (LV429270)

With this plug-in configuration, the circuit breaker can be installed or withdrawn from its base quickly and easily—without the need to connect or disconnect the power circuit. This design facilitates faster maintenance and improved operational flexibility in switchboard and panel installations.

Add to wishlist

Description

Main
Product or component type Plug-in kit
Accessory / separate part category Mounting accessory
Range compatibility ComPact ComPact NSX100
ComPact ComPact NSX160
ComPact ComPact NSX250
ComPact Compact NSX100 DC
ComPact Compact NSX160 DC
ComPact Compact NSX250 DC
Poles description 4P
Complementary
Mounting mode Plug-in
[In] rated current 250 A
Earth-leakage protection Without
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.100 cm
Package 1 Width 30.000 cm
Package 1 Length 39.300 cm
Package 1 Weight 2.148 kg
Unit Type of Package 2 P12
Number of Units in Package 2 24
Package 2 Height 60.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 68.352 kg
Logistical informations
Country of origin FR
Contractual warranty
Warranty 18 months

Additional information

Weight 2.148 kg
