standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

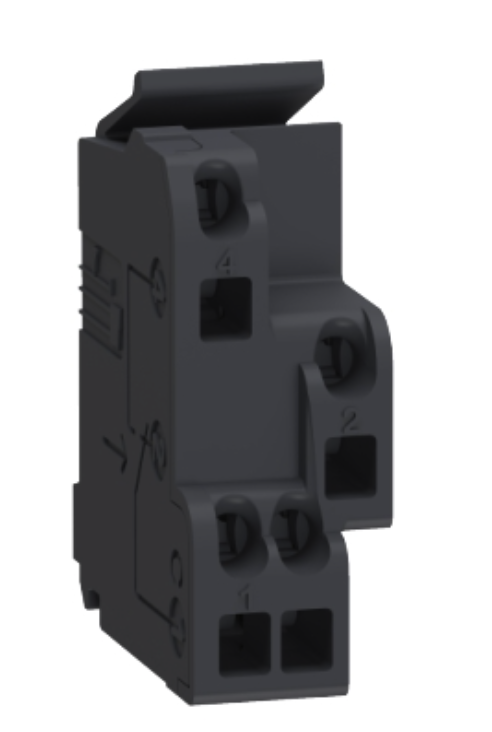

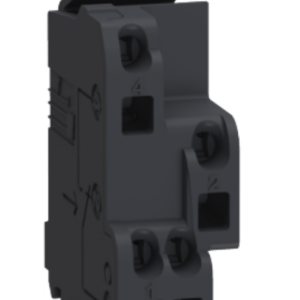

The Schneider Electric Standard Auxiliary Contact (Part No. 29450) is designed to provide remote status indications for ComPact NSX, ComPact NS, PowerPact Multistandard, and EasyPact CVS circuit breakers. This single auxiliary contact delivers comprehensive monitoring capabilities, including:

  • ON/OFF Status (OF): Indicates whether the circuit breaker is open or closed.

  • Trip Indication (SD): Signals that the breaker has tripped due to an overload or short circuit.

  • Fault-Trip Indication (SDE): Provides information on fault-induced trips.

  • Earth Fault Trip Indication (SDV): Specifically for ComPact NSX and PowerPact Multistandard breakers, this indicates trips caused by earth faults.

Key Features:

  • Contact Configuration: 1 changeover contact (1 normally open + 1 normally closed).

  • Rated Current: 6 A.

  • Minimum Load: 100 mA at 24 V DC.

  • Utilisation Categories: AC12, AC15, DC12, DC14.

  • Connection Type: Screwless spring terminals for quick and reliable wiring.

  • Compatible Cable Sizes: 0.5 mm² to 1.5 mm² (AWG 20–16).

  • Compliance: Meets IEC 60947-5-1 standards.

This auxiliary contact is installed in dedicated slots within the circuit breaker, ensuring seamless integration and enhanced monitoring capabilities

Description

Main
Product or component type Auxiliary contact
Device short name OF
SD
SDE
SDV
Device application Breaker status monitoring
Range compatibility ComPact ComPact NS630b…1600
ComPact ComPact NS1600b…3200
ComPact ComPacT INS
ComPact Compact INV
ComPact ComPact NSX
EasyPact EasyPact CVS
PowerPact PowerPact Multistandard
ComPact ComPact NSX DC
Signal contacts composition 1 NO/NC
Complementary
Fault type General electric fault
Local signalling ON/OFF indication for open/close
Trip indicator for relay trip indicator
Fault trip for electrical fault
Auxiliary contacts type Standard
Mounting mode Clip-on
[Ith] conventional free air thermal current 5 A
Breaking capacity (A) AC-12: 6 A at 24 V AC 50/60 Hz
AC-12: 6 A at 48 V AC 50/60 Hz
AC-12: 6 A at 110 V AC 50/60 Hz
AC-12: 6 A at 220/240 V AC 50/60 Hz
AC-12: 6 A at 380/440 V AC 50/60 Hz
AC-12: 6 A at 480 V AC 50/60 Hz
AC-12: 6 A at 660/690 V AC 50/60 Hz
AC-15: 6 A at 24 V AC 50/60 Hz
AC-15: 6 A at 48 V AC 50/60 Hz
AC-15: 5 A at 110 V AC 50/60 Hz
AC-15: 4 A at 220/240 V AC 50/60 Hz
AC-15: 2 A at 380/440 V AC 50/60 Hz
AC-15: 1.5 A at 480 V AC 50/60 Hz
AC-15: 0.1 A at 660/690 V AC 50/60 Hz
DC-12: 6 A at 24 V DC 50/60 Hz
DC-12: 2.5 A at 48 V DC 50/60 Hz
DC-12: 0.6 A at 110 V DC 50/60 Hz
DC-12: 0.3 A at 250 V DC 50/60 Hz
DC-14: 1 A at 24 V DC 50/60 Hz
DC-14: 0.2 A at 48 V DC
DC-14: 0.05 A at 110 V DC
DC-14: 0.03 A at 250 V DC
Minimum load 100 mA at 24 V DC
Auxiliary connection terminal Spring 0.5…1.5 mm² (AWG 20…AWG 16)
Accessory / separate part category Spare part for Compact NS630b…1600
Spare part for Compact NS1600b…3200
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.400 cm
Package 1 Width 7.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 16.900 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 4.500 cm
Package 2 Width 16.000 cm
Package 2 Length 16.000 cm
Package 2 Weight 177.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.785 kg
Logistical informations
Country of origin CN
Contractual warranty
Warranty 18 months

Additional information

Weight 0.016 kg
