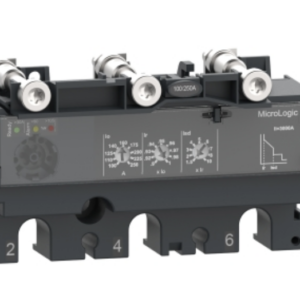

trip unit MicroLogic 2.2 for ComPacT NSX 100/160/250 circuit breakers, electronic, rating 100A, 3 poles 3d - Image 1

trip unit MicroLogic 2.2 for ComPacT NSX 100/160/250 circuit breakers, electronic, rating 100A, 3 poles 3d

trip unit TM100D for ComPacT NSX 100/160/250 circuit breakers, thermal magnetic, rating 100 A, 4 poles 4d
trip unit MicroLogic 2.2 for ComPacT NSX 100/160/250 circuit breakers, electronic, rating 100A, 4 poles 4d

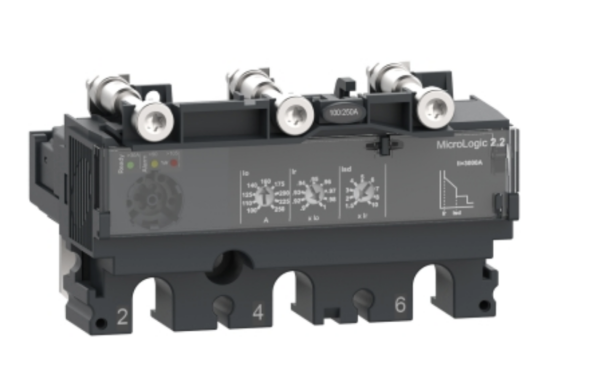

The MicroLogic 2.2 is a 3-pole, 3D electronic trip unit designed for use with Schneider Electric ComPact NSX100, NSX160, and NSX250 circuit breakers. Rated at 100 A, it is an ideal choice for both standard and specialised low-voltage distribution applications.

Key Features:

  • Current Rating: 100 A

  • Protection Functions:

    • Long-Time (Overload): Adjustable

    • Short-Time: Adjustable

    • Instantaneous (Short-Circuit): Fixed

  • Visual Indicators:

    • Alarm LEDs: Indicate overload conditions

    • Green ‘Ready’ LED: Flashes when the circuit breaker is armed and ready to trip

  • Poles: 3

  • Compatibility: Fits ComPact NSX100, NSX160, and NSX250 breakers

  • EcoStruxure Ready: Fully compatible with Schneider Electric’s EcoStruxure™ Power architecture when combined with PowerTag NSX and the ComPact NSX basic frame

This electronic trip unit enhances circuit protection and monitoring, offering precision and reliability across various power applications.

Add to wishlist

Description

Main
Range ComPacT
Range of product ComPacT NSX100…250
Product or component type Trip unit
Trip unit name MicroLogic 2.2
Trip unit technology Electronic
Range compatibility ComPacT NSX100
ComPacT NSX160
ComPacT NSX250
Device application Distribution
Poles description 3P
Protected poles description 3D
Trip unit protection functions LSoI
Protection type L : for overload protection (long time)
So : for short time short-circuit protection with fixed delay
I : for instantaneous short-circuit protection
Trip unit rating 100 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Circuit breaker mounting mode Fixed
Complementary
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 40…100 A
Long-time protection delay adjustment type tr Fixed
[tr] long-time protection delay adjustment range 11 s at 7.2 x Ir
16 s at 6 x Ir
400 s at 1.5 x Ir
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5…10 x Ir
Short-time protection delay adjustment type tsd Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 1500 A
Earth-leakage protection Without
Zone selective interlocking ZSI Without
Local signalling Flashing LED (green) for ready to operate
LED 105 % Ir (red) for overload
LED 90 % Ir (orange) for overload
Environment
Standards EN/IEC 60947-2
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.700 cm
Package 1 Width 9.700 cm
Package 1 Length 11.200 cm
Package 1 Weight 424.900 g
Unit Type of Package 2 S03
Number of Units in Package 2 24
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.720 kg
Unit Type of Package 3 P06
Number of Units in Package 3 192
Package 3 Height 74.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 90.760 kg
Logistical informations
Country of origin FR
Contractual warranty
Warranty 18 months
