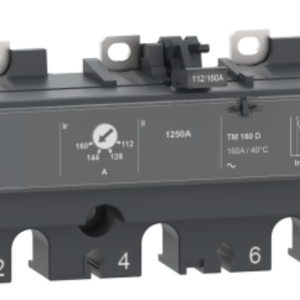

trip unit TM160D for ComPacT NSX 160/250 circuit breakers, thermal magnetic, rating 160 A, 3 poles 3d - Image 1

trip unit TM160D for ComPacT NSX 160/250 circuit breakers, thermal magnetic, rating 160 A, 3 poles 3d

trip unit TM250D for ComPacT NSX 250 circuit breakers, thermal magnetic, rating 250 A, 3 poles 3d
trip unit MicroLogic 2.2 for ComPacT NSX 160/250 circuit breakers, electronic, rating 160A, 3 poles 3d

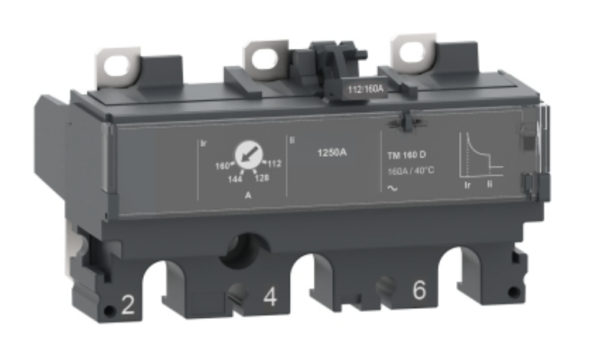

The TM160D is a 3-pole, 3D thermal-magnetic trip unit designed for use with Schneider Electric ComPact NSX160 circuit breakers. With a current rating of 160 A, it provides reliable protection for a wide range of low-voltage distribution applications.

Key Features:

  • Current Rating: 160 A

  • Protection Functions:

    • Thermal (Overload): Adjustable

    • Magnetic (Short-Circuit): Fixed

  • Poles: 3

  • Application: Ideal for general-purpose distribution systems

  • Compatibility: For use with ComPact NSX160 circuit breakers

  • EcoStruxure Ready: Fully compatible with Schneider Electric’s EcoStruxure™ Power architecture when combined with PowerTag NSX and the ComPact NSX basic frame

This trip unit offers dependable mechanical protection and seamless integration with digital energy management platforms.

Add to wishlist

Description

Main
Range ComPacT
Range of product ComPacT NSX100…250
Product or component type Trip unit
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Range compatibility ComPacT NSX160
Device application Distribution
Poles description 3P
Protected poles description 3D
Trip unit protection functions LI
Protection type L : for overload protection (thermal)
I : for short-circuit protection (magnetic)
Trip unit rating 160 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Circuit breaker mounting mode Fixed
Complementary
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7…1 x In
Long-time protection delay adjustment type tr Fixed
[tr] long-time protection delay adjustment range 120…400 s at 1.5 x In
15 s at 6 x Ir
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 1250 A
Earth-leakage protection Without
Environment
Standards EN/IEC 60947-2
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 10.000 cm
Package 1 Length 11.400 cm
Package 1 Weight 383.900 g
Unit Type of Package 2 S03
Number of Units in Package 2 28
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.152 kg
Logistical informations
Country of origin PL
Contractual warranty
Warranty 18 months
