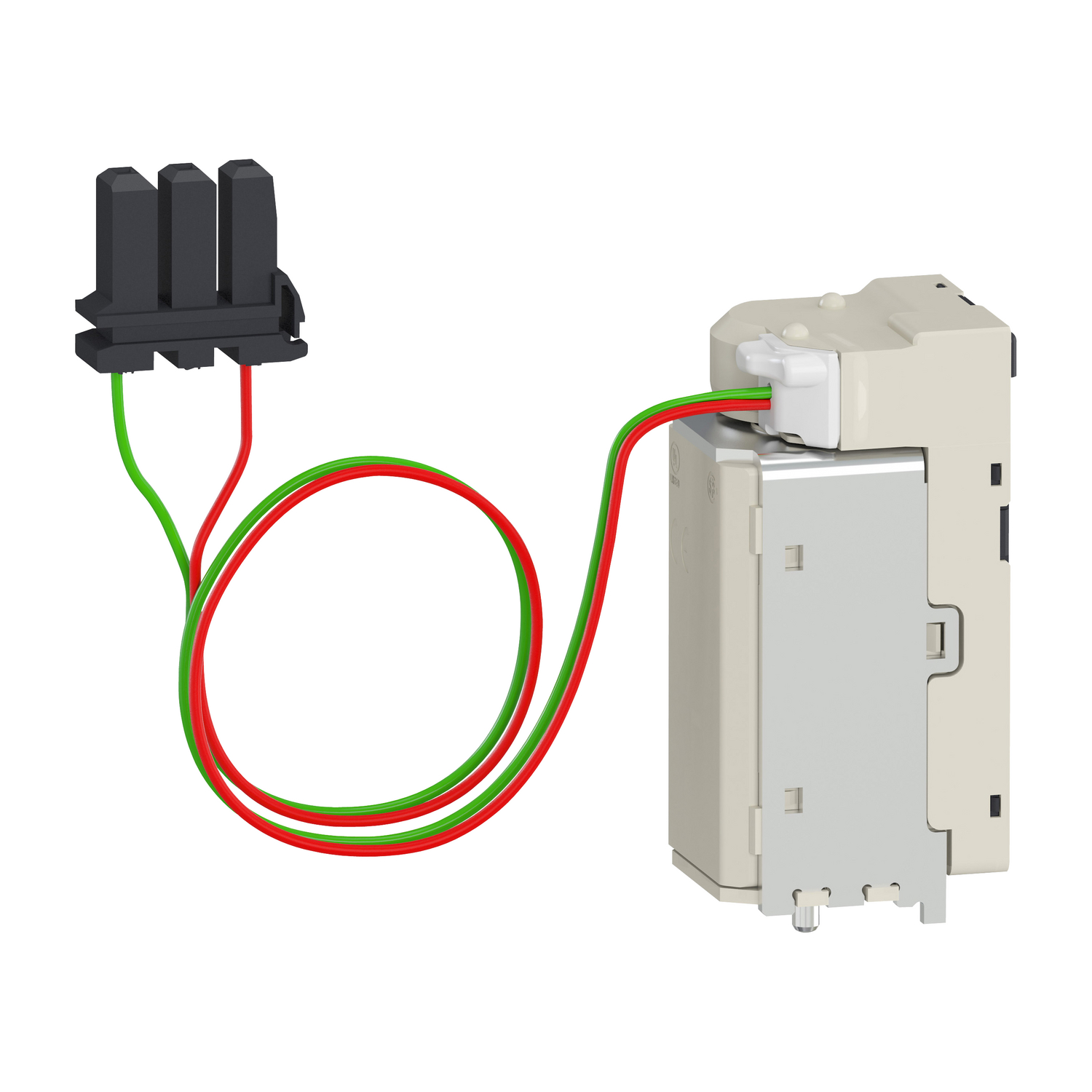

XF or MX voltage release, standard, Masterpact MTZ1/2/3, 24 VAC 50/60 Hz, 24/30 VDC
XF or MX voltage release, standard, Masterpact MTZ1/2/3, 24 VAC 50/60 Hz, 24/30 VDC
- Description
- Size Guide
- Additional information
- More Products
Description
| Range | MasterPact |
|---|---|
| Product or component type | Voltage release |
| Device application | Control |
| Range compatibility | Masterpact MasterPact MTZ2 circuit-breaker Masterpact MasterPact MTZ3 circuit-breaker Masterpact MasterPact MTZ1 circuit-breaker |
| Voltage release type | Closing coil Opening coil |
| [Un] voltage power supply | 24 V AC 50 Hz 24…30 V DC |
|---|---|
| Threshold tripping voltage | 0.7…1.1 Un on opening 0.85…1.1 Un on closing |
| Holding power consumption | 4.5 W |
| Circuit breaker mounting mode | Fixed/drawout |
| Maximum response time | 60 ms on opening for MasterPact MTZ1 60 ms on opening for MasterPact MTZ2 60 ms on opening for MasterPact MTZ3 65 ms on closing for MasterPact MTZ1 80 ms on closing for MasterPact MTZ2 90 ms on closing for MasterPact MTZ3 |
| Provided equipment | 1 instruction sheet |
| Offer type | Spare part |
Additional information
| Weight | 0.2 kg |
|---|
